Brand-new automated production process enhances production efficiency

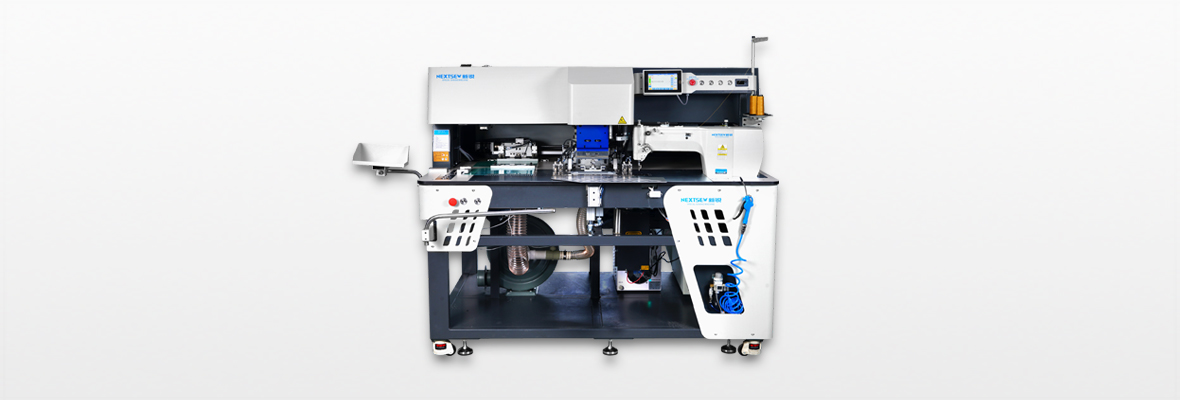

NS-2210N-PW PRODUCT FEATURES

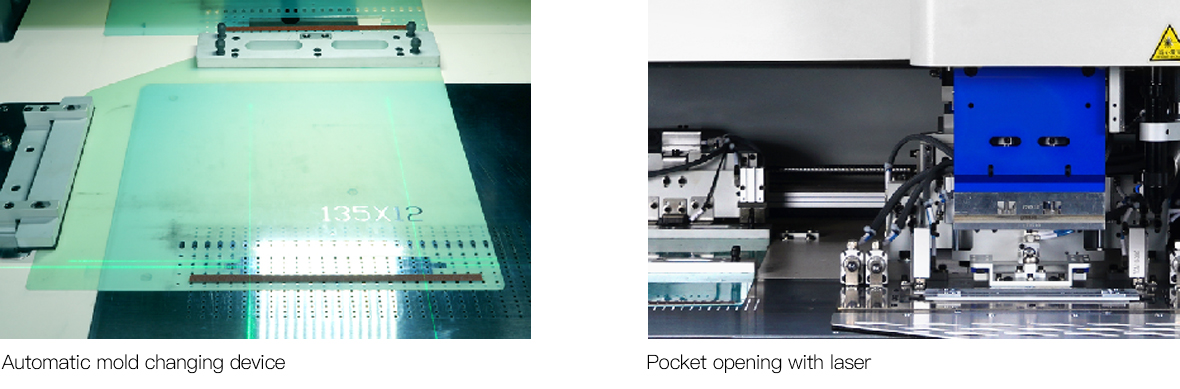

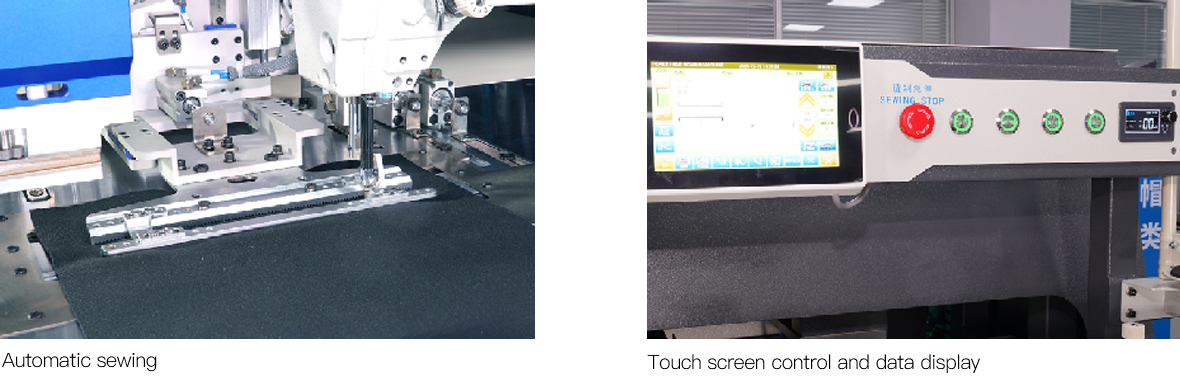

1 .Pocket opening with laser, automatic folding, automatic feeding, automatic sewing process one-time completion, high- quality and efficient.
80-100w laser power adjustable, suitable for different fabrics.
Infrared positioning function, accurate positioning, simple operation.
The intelligent induction, automatic stopping function.
Performance advantage
X and Y are driven by servo motors, which have the characteristics of fast speed, light sound and long service life. All key parts are imported parts.The automatic non-ironing pocket folding mechanism adopts automatic cylinder folding technology to improve production efficiency and save labor.The internal pressure frame automatically shrinks the mechanism, so that the edge stitch changes of the pocket are not limited, and the efficiency is 3 times that of ordinary pocket opener.
NS-2210N-PW Open pocket pattern type
NS-2210N-PW Application Example
SPECIFICATIONS
Machine head
2210 Pattern Sewing Machine head
Needle
DPx17(12#14#)
Head sewing speed
1800-2800 rpm
Stitch programming storage capacity
Operation screen input mode
Trace programming storage capacity
Can store up to 999 inds of pattens
Stitch distance
1.0mm-3.5mm
Presser foot rising height
60mm-80mm
Sewing pocket range
X:100mm-220mm;Y:10mm-35mm
Cloth positioning
Infrared spotlights
Sewing pocket speed
30-40seconds/piece(depending on the speed of the worker)
Folding pocket mode
Fold the pocket simultaneously in all four directions
Pocket opening mode
120Wlaser cutting mode
Sewing working mode
Pocket opening /folding/sewing/cutting/ bartacking
Cloth feeding drive method
(750w) Servo motor driven(750W)
Power supply
AC 220V
Air pressure/air pressure consumption
0.6Mpa(6kg/cm);22dm/min
Weight
862 Kg
Thread broken induction
With intelligent wire break induction
Packing size
1925×1550×1700mm
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
