Intelligent control system, easy and convenient to operate

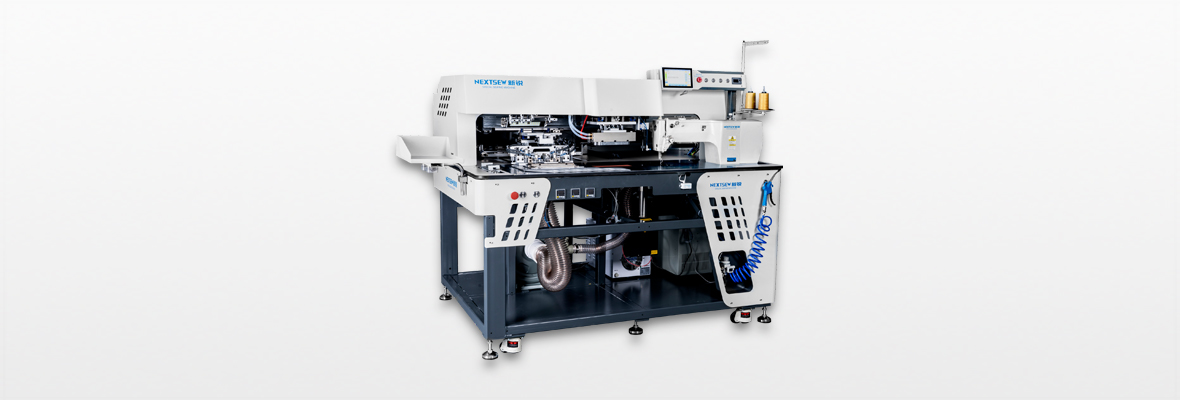

NS-108N-SPW PRODUCT FEATURES
1.Intelligent control system, fast parameter setting, a variety of process types to choose from.
2.Innovative pressure frame design, for different processes, quickly switch the type of pressure frame.

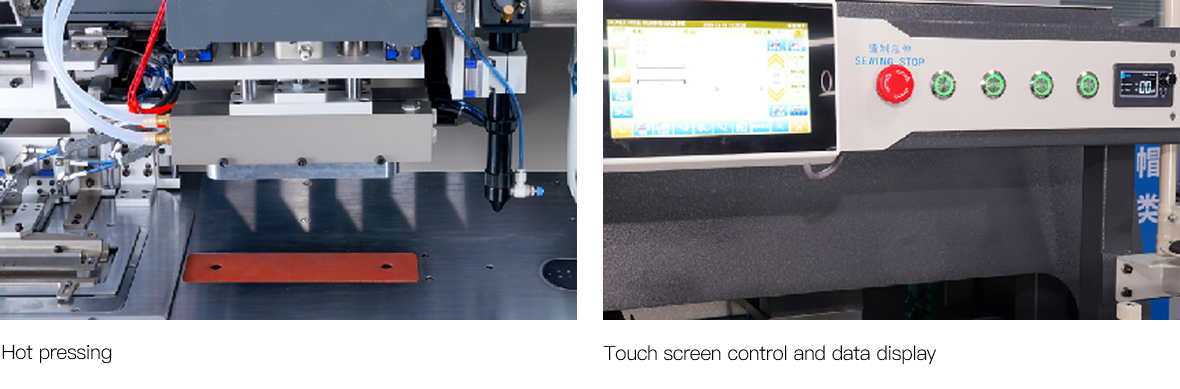

3.The innovative bottom hot pressing device makes the hot pressing bonding effect of the two ends of the zipper more uniform and firm.

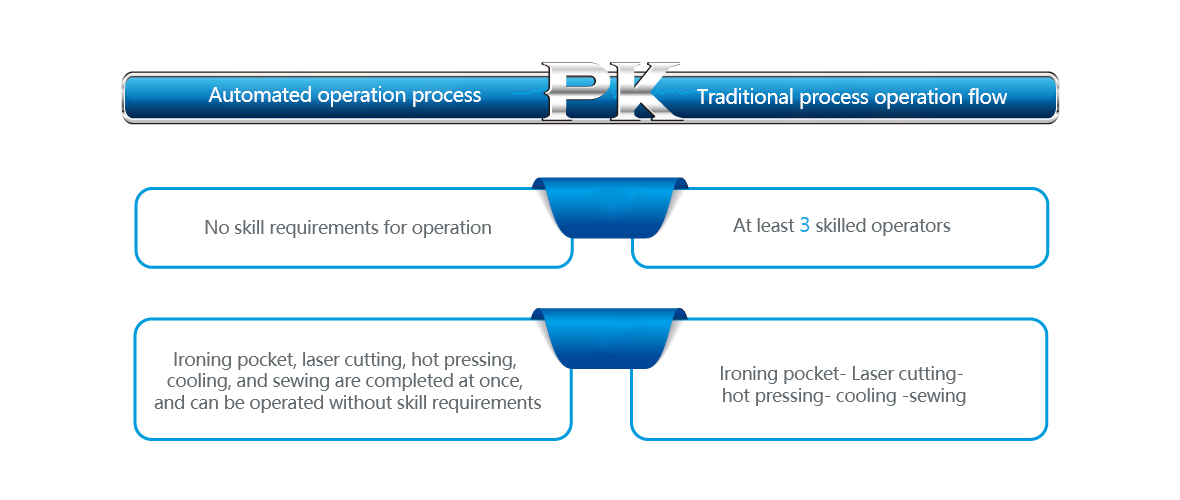

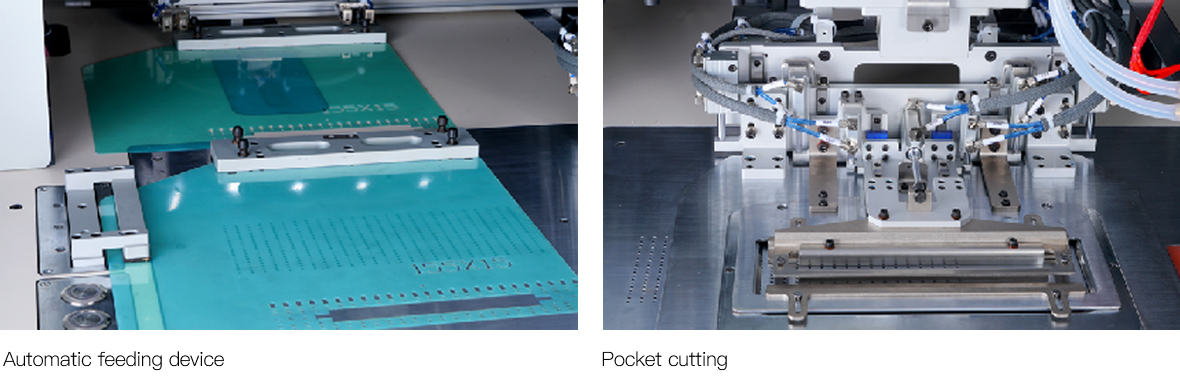

4.The process is integrated, and the feeding, hot pressing, cooling, and sewing are automatically completed by one device.

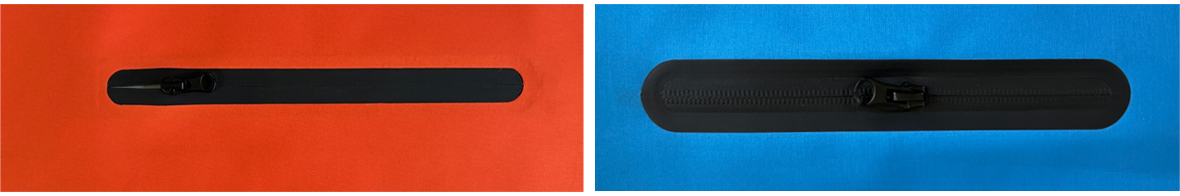

NS-108N-SPW Application Example
SPECIFICATIONS
Machine Head
Electonic Pattern Machine
Needle Type
DPx17(9#-14#)
Stitches
Single Lockstitch
Feeding device
Intermittent feeding(pulse motor drive)
Stitches distance
0.05-12.7mm
Max.sewing speed
2800rpm
Max.pocket size
220mm(X)x35mm(Y)
Pocket opening mode
120W laser cutting mode
Sewing working mode
pocket cutting/hot pressing/cooling/sewing
Fabric positioning
Infrared spotlights
Production Efficiency
（depends on fabric size）
Peak power
1200W
Motor
AC-servo motor 750W
Power supply
Single phase 220V
Air pressure
0.5Mpa
Package size
(L) 1800 ×（W）1280 ×（H）1500 mm
Weight
686kg
Thread broken induction
With intelligent thread break induction
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
