Brand-new automated production process enhances production efficiency

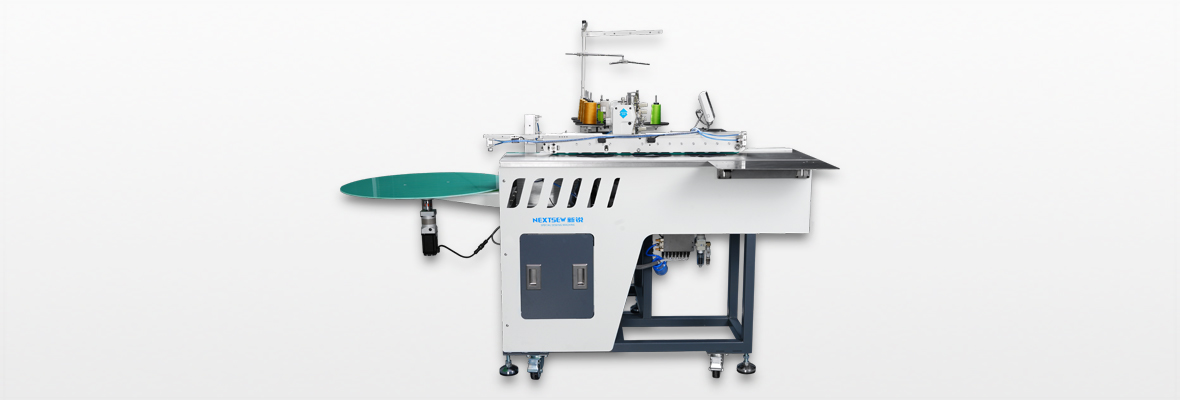

NS-7035B-PH PRODUCT FEATURES

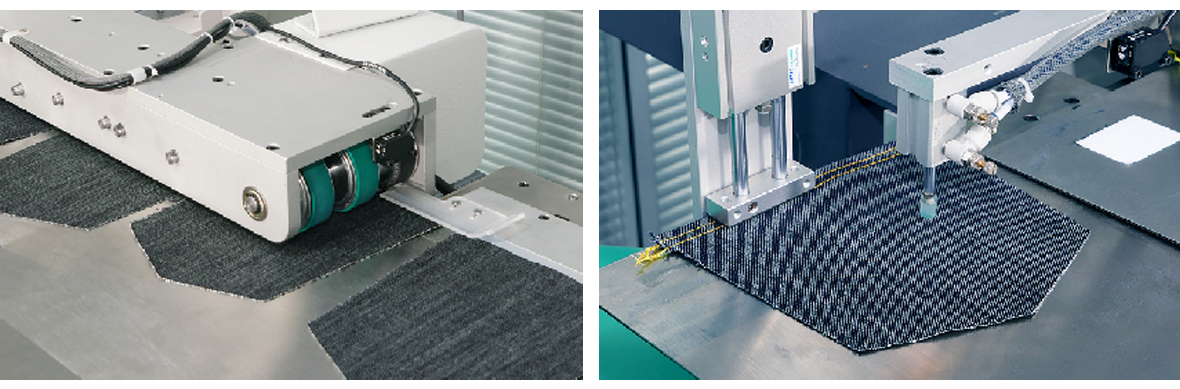

1, synchronous belt automatic feeding, automatic sewing, automatic collecting once completed, saving time and labor.

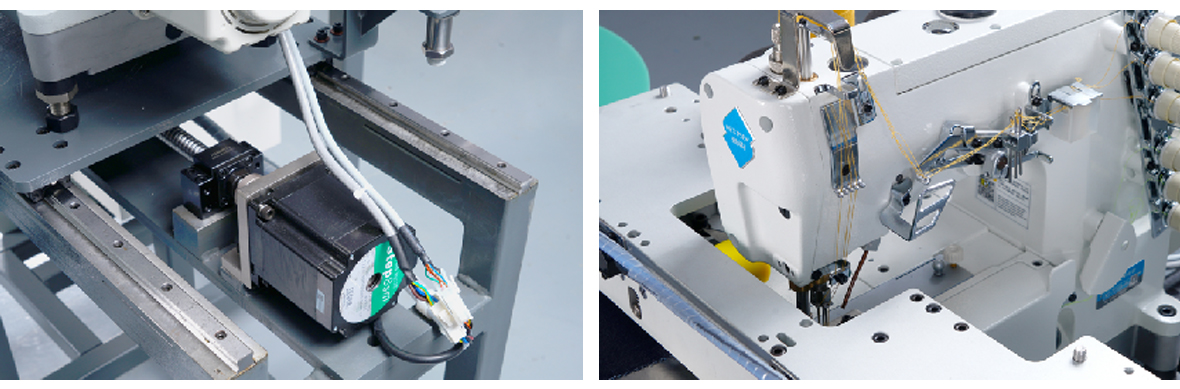

2.Using the interlock sewing machine, and the chain stitches are more beautiful.
3.The stitches margin can be freely set in 5 levels.

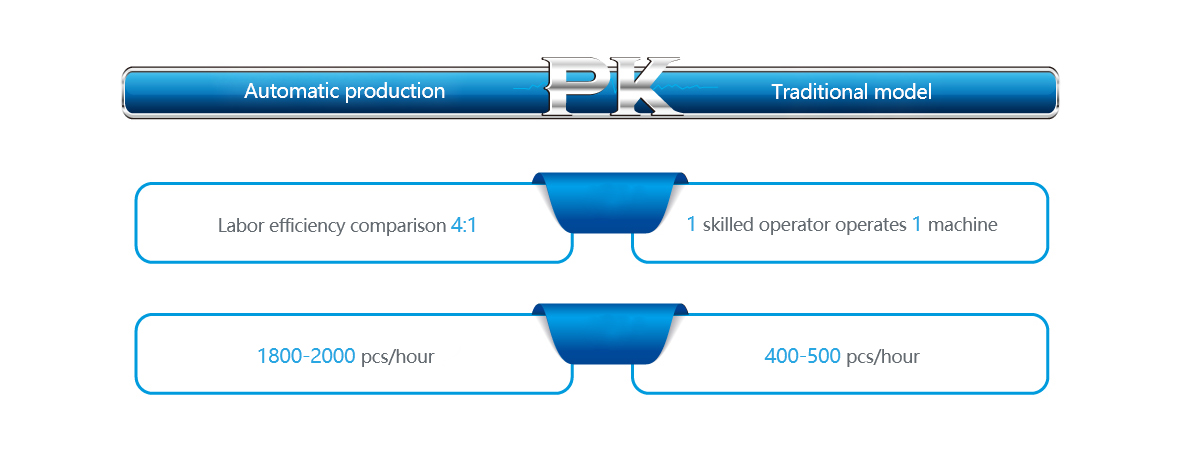

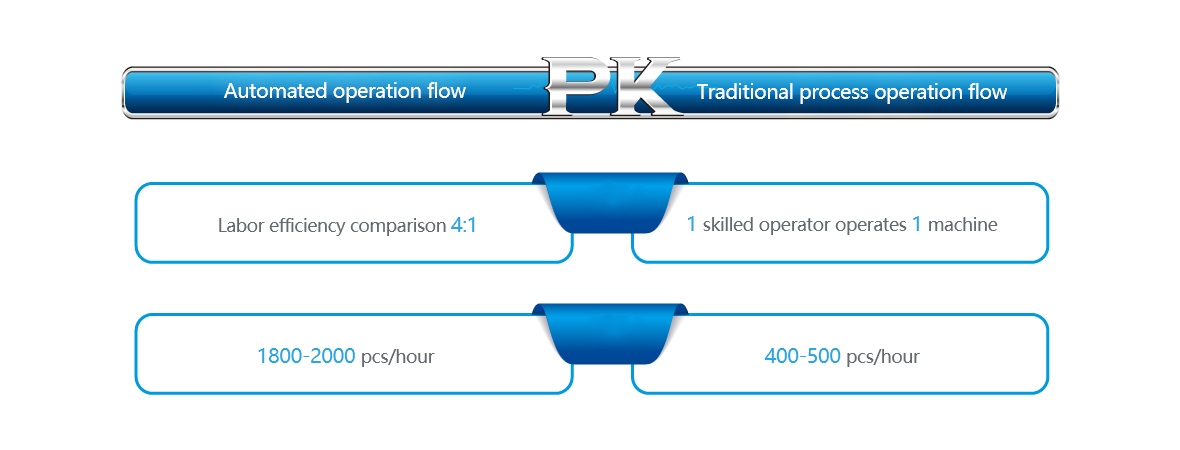

4.The production efficiency can reach: 35 pcs/min.

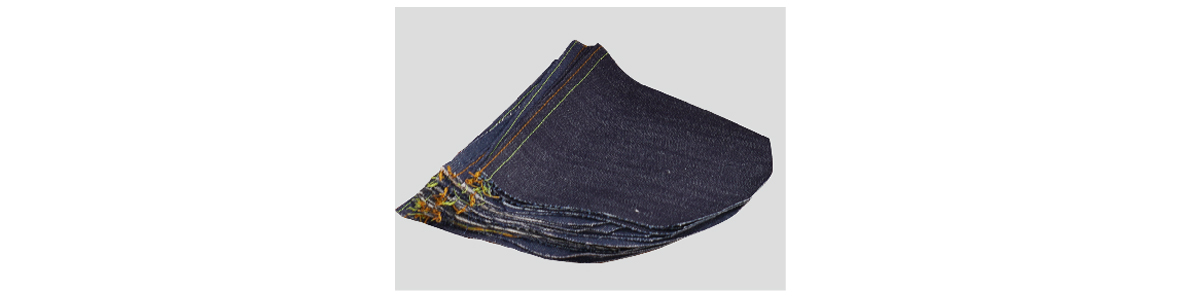

NS-7035B-PH Application Example
SPECIFICATIONS
Machine model
NS-7035B-PH
Machine Head
Flatbed interlock sewing machine
Maximum sewing speed
5000rpm
Stitch
chain stitches
Needle type
UY128GAS(9#-11#)
Working voltage
AC220V
Working air pressure
0.5Mpa 1.8L/min
Weight
200kgs
External dimension
1300x1100x1400mm
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
