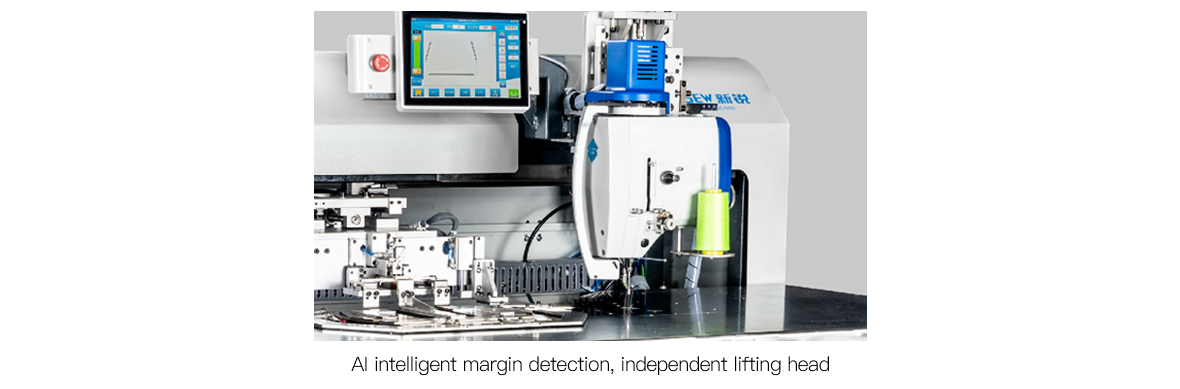

AI intelligent margin detection, precisely controlling margins

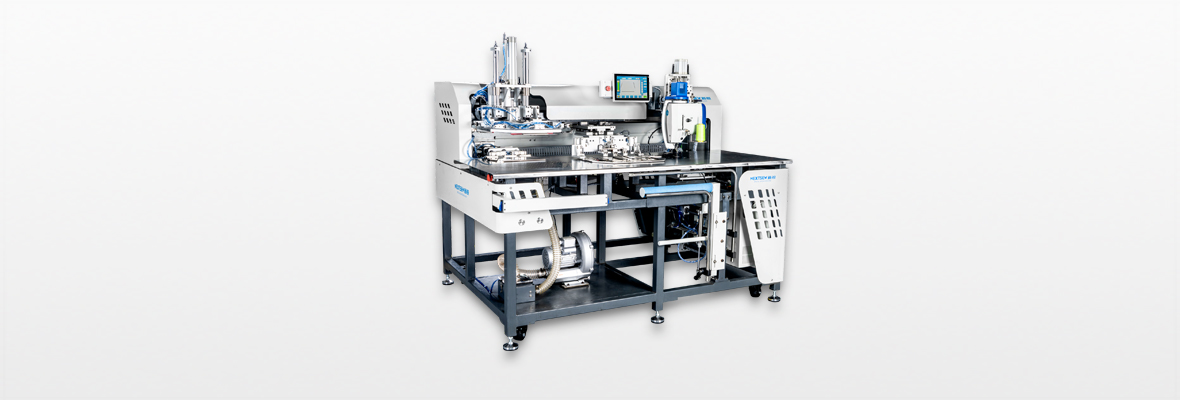

NS-106N-KP PRODUCT FEATURES
1.The AI intelligen margin detection function adopts a high-precision distance sensor to accurately control the sewing distance to the edge.
2.Independent lifting head, frees up more sewing space.
3.The full servo electric control system makes the sewing more accurate and the stitches more beautiful.
4.Intelligent digital programming function, simple and fast.
NS-106N-KP Application Example
SPECIFICATIONS
Machine type
NS-106N-KP
Machine Head
Independent lift head
Needle Type
DPx17(12#-16#)
Stitches
Single Lockstitch
Feeding device
Intermittent feeding(pulse motor drive)
Stitches distance
0.05-12.7mm
Max.sewing speed
2800rpm
Max.sewing pocket size
550mm(X)x350mm(Y)
AI intelligent margin detection function
ON/OFF
Production Efficiency
（depends on fabric size）
Peak power
900W
Motor
AC-servo motor 750W
Power supply
Single phase 220V
Air pressure
0.5Mpa
Package size
(L) 1980mm*（W）1400mm*（H）1680mm
Weight
585kg
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
