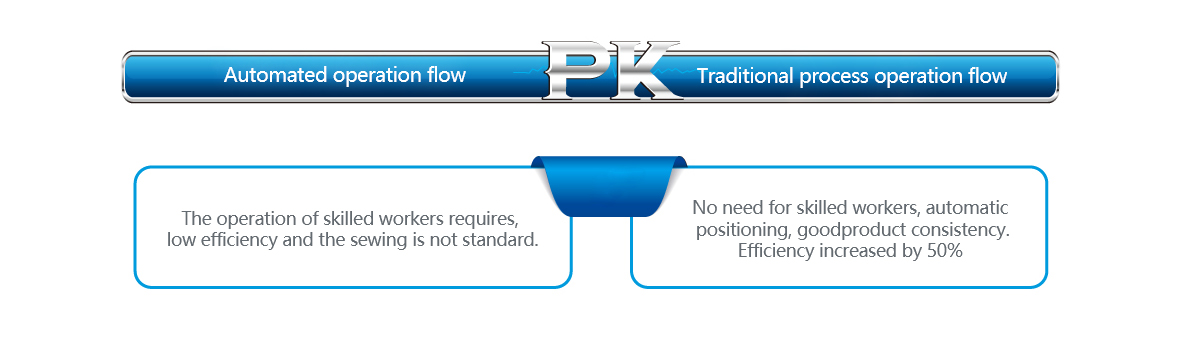

Brand-new automated production process enhances production efficiency
NS-2210N-JS PRODUCT FEATURES

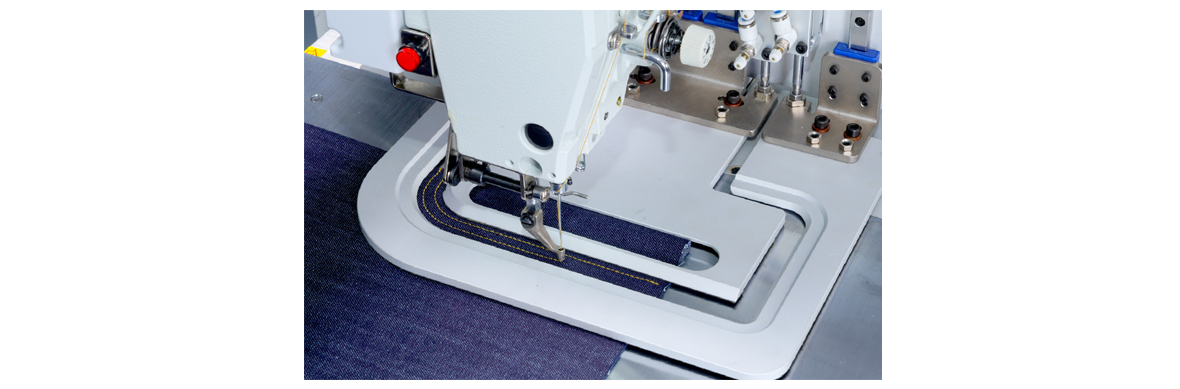

1.Process integration,positioning, feeding, sewing,receiving, all processes are automatically completed on one machine.The operator only needs to put in the cutting piece and press the start button, and the machine automatically completes the sewing of the entire J stitch.
2.The design of the adjustable work clamp adapts to the size of the J stitch of different sizes and types.
NS-2210N-JS Application Example
SPECIFICATIONS
Machine type
NS-2210N-JS
Machine Head
Electonic Pattern Machine
Stitches
Single Lockstitch
Feeding device
Intermittent feeding(pulse motor drive)
Needle Type
DPx17(16#-19#)
Stitches distance
0.05-12.7mm
Max.sewing speed
2800rpm
Max.J Stitch Size
70mm(W)x 215mm(L)
Production Efficiency
（depends on fabric size）
Motor
AC-servo motor 750W
Peak power
210W
Power supply
Single phase 220V
Air pressure
0.5Mpa
Package size
1400x740x1360 mm
Weight
231kg
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
