Compared with traditional techniques, the production efficiency has increased by more than 200%!

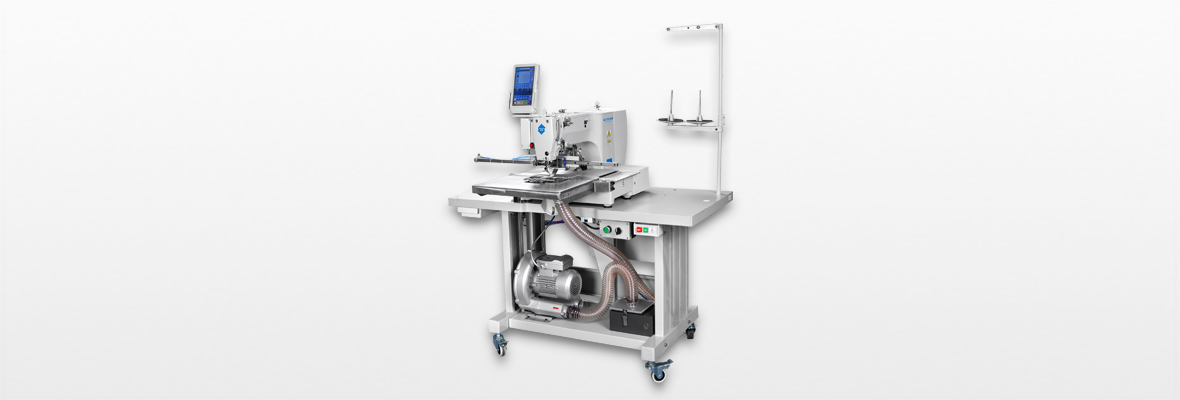

NS-2210GT-01A/WS PRODUCT FEATURES
1.The suction positioning function makes the fabric positioning accurate.

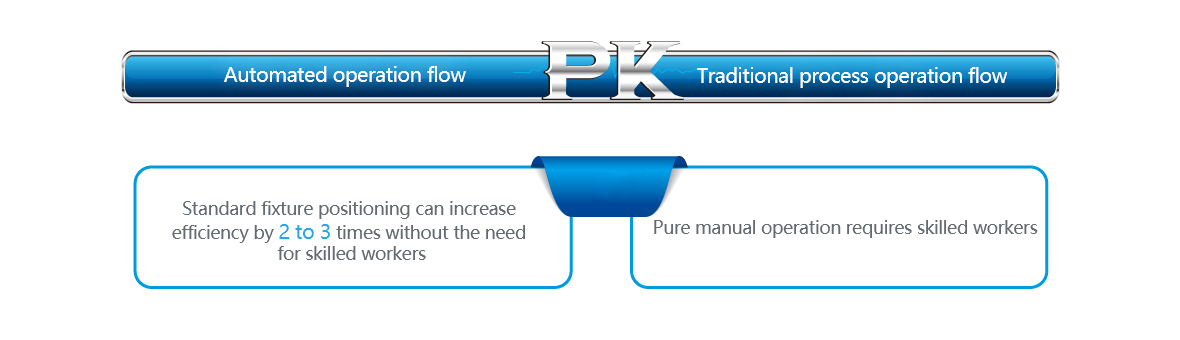

2.Compared with manual stitching, the sealing process is simplified, and the efficiency is usually 2-3 times that of manual stitching.

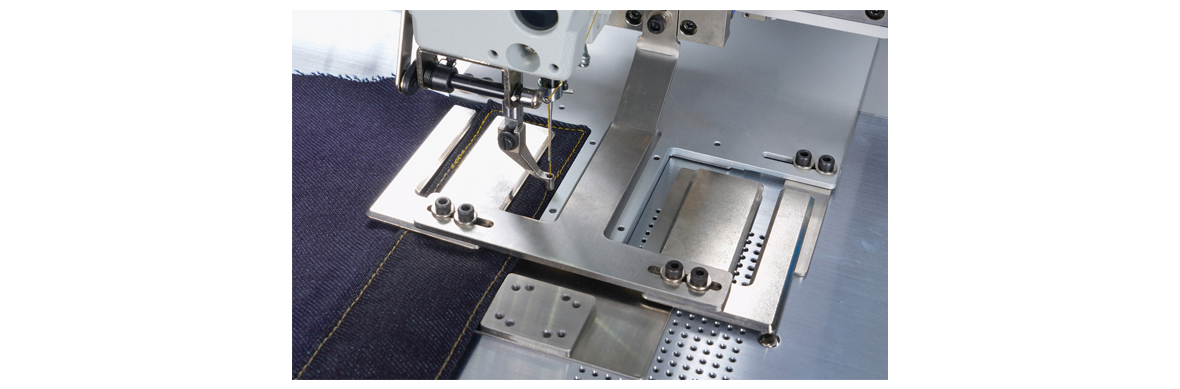

3.The innovative fixture design adapts to the waist size of various sizes.The work clamp adopts a side-sliding press mechanism for precise sewing.
NS-2210GT-01A/WS Application Example
SPECIFICATIONS
Machine type
NS-2210GT-01A/WS
Machine Head
Electonic Pattern Machine
Needle Type
DPx17(16#-19#)
Stitches
Single Lockstitch
Feeding device
Intermittent feeding(pulse motor drive)
Stitches distance
0.05-12.7mm
Max.sewing speed
2800rpm
Production Efficiency
（depends on fabric size）
Motor
AC-servo motor 750W
Max. Waist Size
75mm(W)x70mm(L)
Power supply
Single phase 220V
Peak power
700W
Air pressure
0.5Mpa
Package size
(L) 1170 mm*（W）900 mm*（H）1350 mm
Weight
166kg
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
