NS-9820-00/01/02

ELECTRONIC EYELET BUTTON HOLER

NS-9820-00/01/02

Accurate sewing based on sewing data

NS-9820-00/01/02 PRODUCT FEATURES

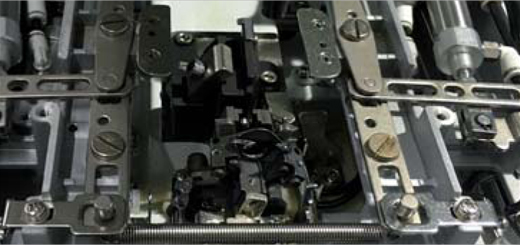

Improved the thread catach structure to avoid the thread fall off.

Special process processing of gears and cams, a significant reduction in the machine noise and vibration, after a scientific experimental test, the noise than the historical data reduced by 8-10 dB, the operators comfort greatly improved.

Improved cylinder

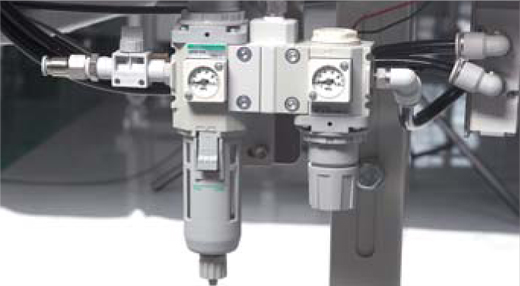

Improved pipe port to make connection much easier.

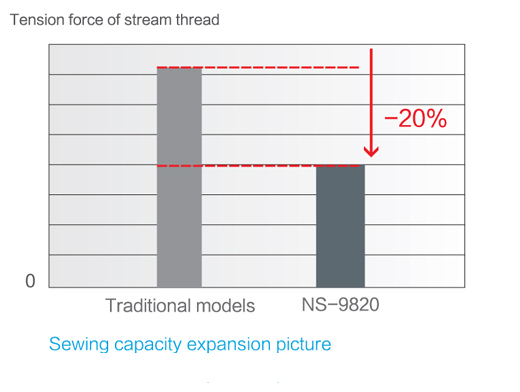

Reduce skip stitch

Improved the looper and thread take-up, machine can stitch different fabric with different thread.
3.0mm-wide zigzag sewing, after-sewing cutting.
2 pieces of polyester serge (one side of one piece has a layer).
Span thread :#40
Tension force of end thread:30g
Sewing speed:2,500 rpm

Making the accurate pattern

The machine controlled by servo system, it makes the patterns accurate even in high speed stitching. Servo control system avoid the initial position checking.

Easy operation

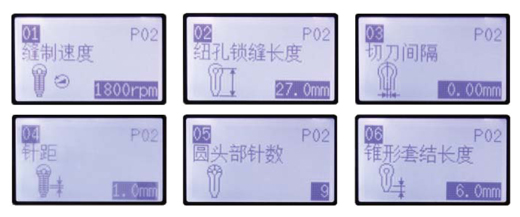

NS-9820 has liquid crystal display(LCD), supported by icon and character
display. When setting or checking pictures and changing sewing mode, it is
easy to understand and operate.

The display of icons and characters makes it easy to understand

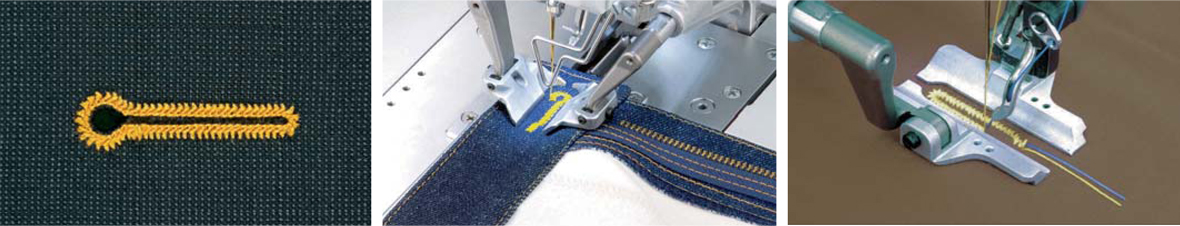

Special specification of thread trimmer for -02 model

The machine model -02 can stitch big size pattern for both casual pants and jeans. The length of eyelet button hole can be 18-26 mm.

Easy adjustment

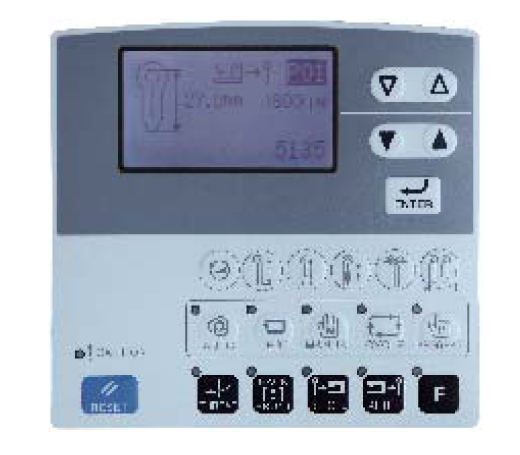

The position and adjustment of cutting knife can be adjusted by operate panel. All these adjustments will be showing in the operate panel in image.

NS-9820-00/01/02 Application Example

SPECIFICATIONS

  • NS-9820-00
  • NS-9820-01
  • NS-9820-02
Needle thread trimmer
Long thread trim
Bobbin thread trimmer
None
Main applications
Suit-dress
Other applications
Men’s clothing, casual clothing, jeans trousers, trousers
Function
Only trim the needle thread. The max. length of button hole is 50mm;
Sewing length
Round-head eyehole 8-50mm Straight button hole 5-50mm
Press foot length (standard)
30mm
Length of hammer (standard)
22mm
Length of hammer (accessory)
30mm
Sewing speed
1000-2500 rpm
Needle code
0.5-2.0mm
Zigzag sewing width
In mechanical conditions, it is 4.0mm wide at most and the zigzag sewing width is 5.0 at most.
Zigzag sewing width (factory setting)
2.5mm
Length of stream thread
0-20mm
Height of work clamp
Standard height is 12mm (may reach 16mm at highest)
Start-off mode
Double pedal switch
Fabric feeding device
Intermittent cloth-sending of 3 pulse motors (X, Y, )
Machine needle 4
DOx558 Nm80 - Nm120
Safe setting
If there are any problems, the inner setting with urgent stop function and driven by safe circuit will automatically stop the machine
Upper shaft motor
AC-servo motor 550W
Air pressure
Main regulator :0.5 Mpa Hammer-pressure regulator :0.4 Mpa
Air consumption volume
43.2 liter/minute (8 cycles/minute)
Power supply
Machine head:≈120 kg / Operation board :≈0.6 kg / Control box :14.2-16.2 kg.
Weight
Single phase 100V/200V, Three phases 200V/220V/380V/400V, 400VA
Needle thread trimmer
Long thread trim
Bobbin thread trimmer
Long thread trim
Main applications
Men’s clothing, casual clothing
Other applications
Suit-dress jeans trousers, trousers
Function
Trimming both needle thread and bobbin thread.
Sewing length
Round-head eyehole 8-42mm Straight button hole 5-42mm
Press foot length (standard)
30mm
Length of hammer (standard)
22mm
Length of hammer (accessory)
30mm
Sewing speed
1000-2500 rpm
Needle code
0.5-2.0mm
Zigzag sewing width
In mechanical conditions, it is 4.0mm wide at most and the zigzag sewing width is 5.0 at most.
Zigzag sewing width (factory setting)
2.5mm
Length of stream thread
0-20mm
Height of work clamp
Standard height is 12mm (may reach 16mm at highest)
Start-off mode
Double pedal switch
Fabric feeding device
Intermittent cloth-sending of 3 pulse motors (X, Y, )
Machine needle 4
DOx558 Nm80 - Nm120
Safe setting
If there are any problems, the inner setting with urgent stop function and driven by safe circuit will automatically stop the machine
Upper shaft motor
AC-servo motor 550W
Air pressure
Main regulator :0.5 Mpa Hammer-pressure regulator :0.4 Mpa
Air consumption volume
43.2 liter/minute (8 cycles/minute)
Power supply
Machine head:≈120 kg / Operation board :≈0.6 kg / Control box :14.2-16.2 kg.
Weight
Single phase 100V/200V, Three phases 200V/220V/380V/400V, 400VA
Needle thread trimmer
Short thread trim
Bobbin thread trimmer
Short thread trim
Main applications
Jeans trousers, trousers
Other applications
-
Function
Trimming both needle thread and bobbin thread. No need second trim
Sewing length
22-30mm* 14-22mm* 18-26mm* 26-34mm* 34-42mm*
Press foot length (standard)
30/26mm
Length of hammer (standard)
24/20mm
Length of hammer (accessory)
28/24mm
Sewing speed
1000-2500 rpm
Needle code
0.5-2.0mm
Zigzag sewing width
In mechanical conditions, it is 4.0mm wide at most and the zigzag sewing width is 5.0 at most.
Zigzag sewing width (factory setting)
3mm
Length of stream thread
0-20mm
Height of work clamp
16mm
Start-off mode
Double pedal switch
Fabric feeding device
Intermittent cloth-sending of 3 pulse motors (X, Y, )
Machine needle 4
DOx558 Nm80 - Nm120
Safe setting
If there are any problems, the inner setting with urgent stop function and driven by safe circuit will automatically stop the machine
Upper shaft motor
AC-servo motor 550W
Air pressure
Main regulator :0.5 Mpa Hammer-pressure regulator :0.4 Mpa
Air consumption volume
43.2 liter/minute (8 cycles/minute)
Power supply
Machine head:≈120 kg / Operation board :≈0.6 kg / Control box :14.2-16.2 kg.
Weight
Single phase 100V/200V, Three phases 200V/220V/380V/400V, 400VA
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
