Brand-new automated production process enhances production efficiency

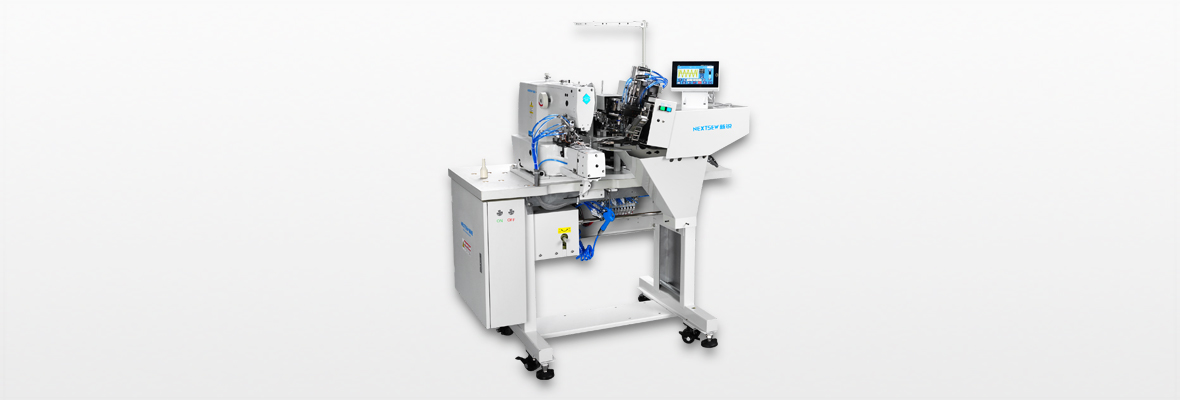

NS-254GS-H/S PRODUCT FEATURES
1.The automatic selecting, cutting, folding, feeding and bartacking processes of belt loops are completed at once, saving time and effort.
2.Simple parameter settings can realize the adjustment of the length of the belt loop, the position of the belt loop, the position of the outer shuttle hook needle, etc., and the operation is simple.
3.The motor-driven feeding device is simpler to adjust and more efficient.

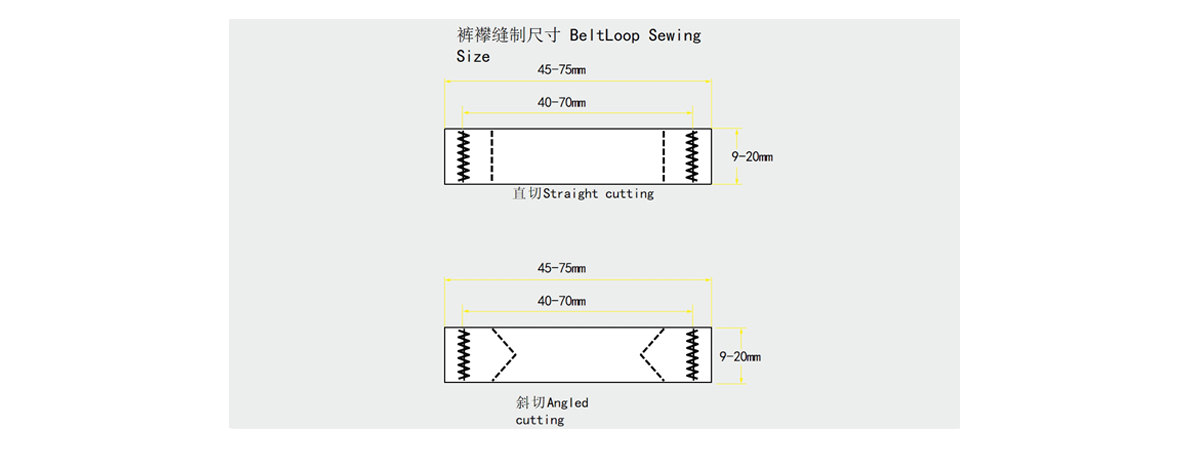

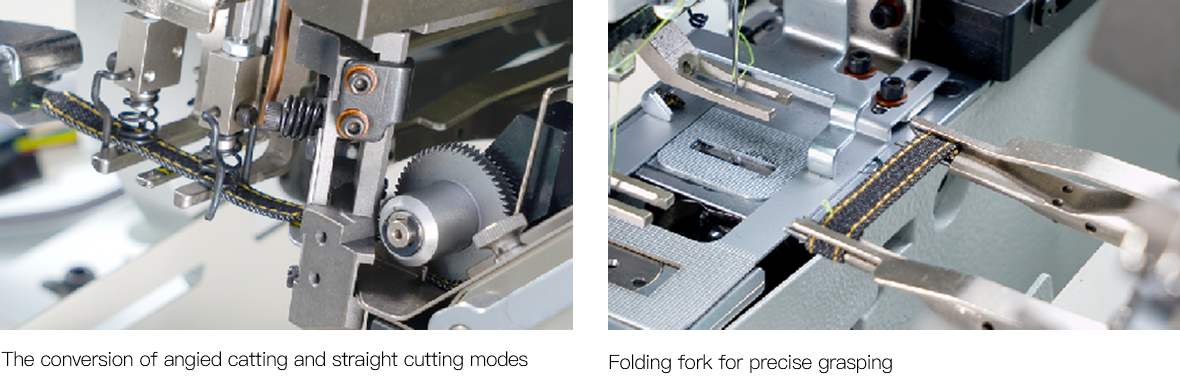

4.The switching conversion of angied chamfering and straight cutting modes can be easily achieved through simple adjustments.

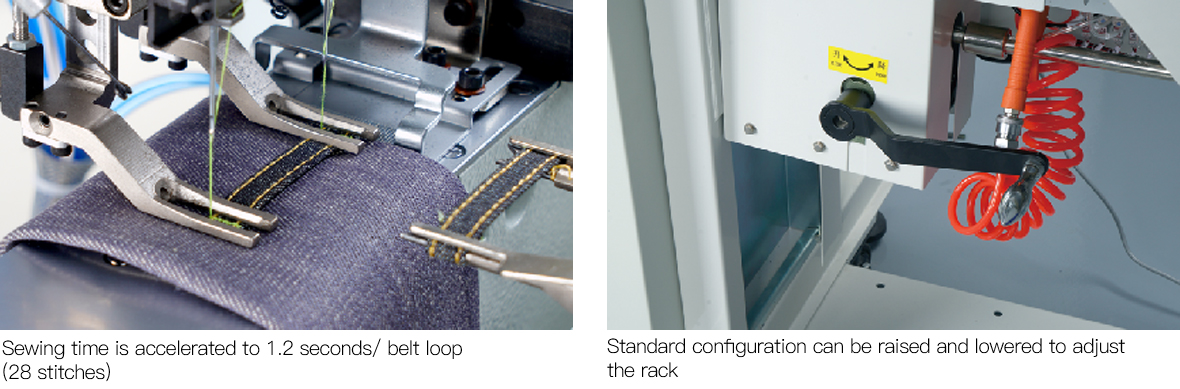

5.The standard adjustable lifting frame is equipped with simple adjustment to achieve easy sewing.

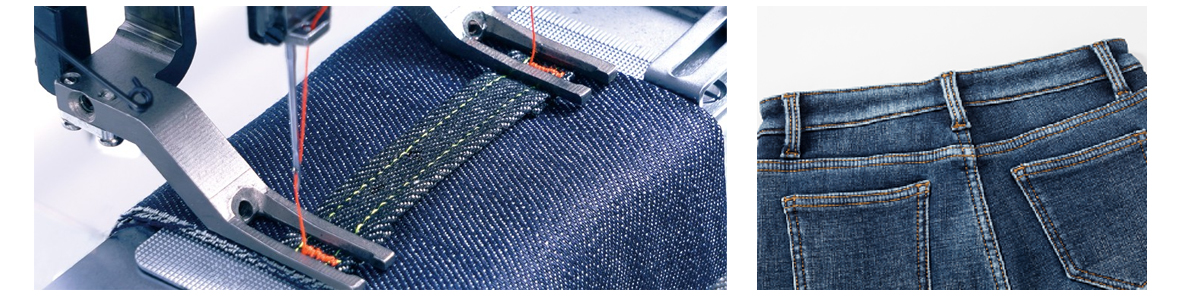

NS-254GS-H/S Application Example
SPECIFICATIONS
Specification
NS-254GS-H/S
Trace
Lockstitch
Sewing process
automatic selecting, cutting, folding and bartacking processes completed at one time
Maximum sewing speed
(Sewing spacing less than 3.4mm)
Needle
DPx17(19#~21#)
Number of stitches
(Select from the Operation panel)
Stitch distance
45~75mm ( 1-11/16”~ 2-3/4”)
Presser foot rise
21mm
Reinforce stitch the width of the bartacking
1.0~3.5mm
Reinforce stitch the belp loop width
9-20mm
Reinforce stitch the belp loop length
45-75mm
Cloth feeding mode
Continuous cloth feeding (pulse motor drive mode)
Reinforcement stitch pattern memory
Standard capacity 9 patterns
Stitch adjustment mode
Operation panel input mode
Voltage
AC220V,50/60Hz
Air pressure
0.5MPa 1.8L/min
Net weight
230kg
Package size
1200×800×1350 mm(L×W×H)
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
