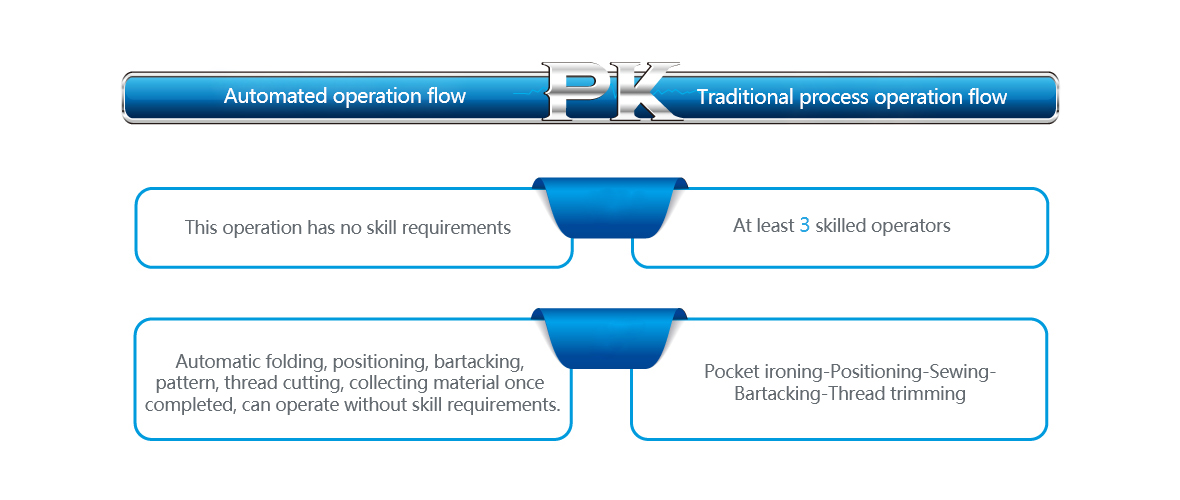

Brand-new automated production process enhances production efficiency

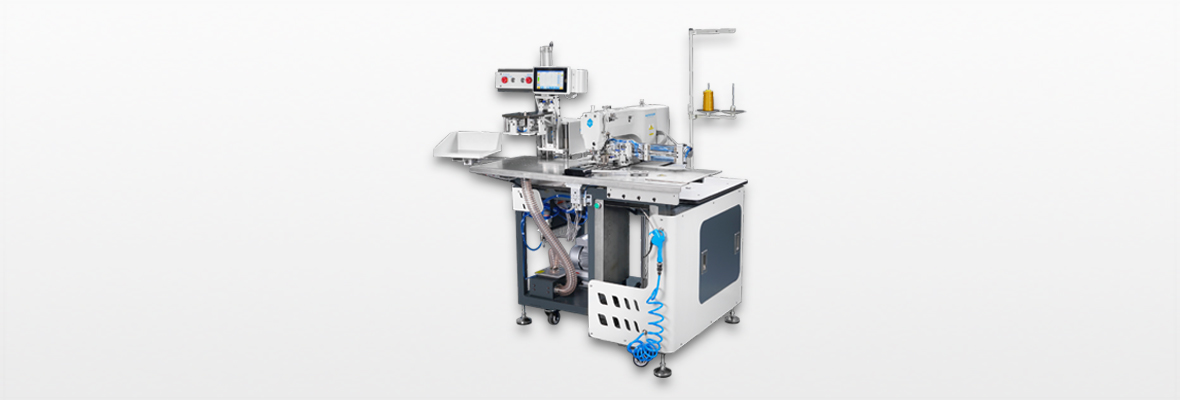

NS-2212N-WP PRODUCT FEATURES

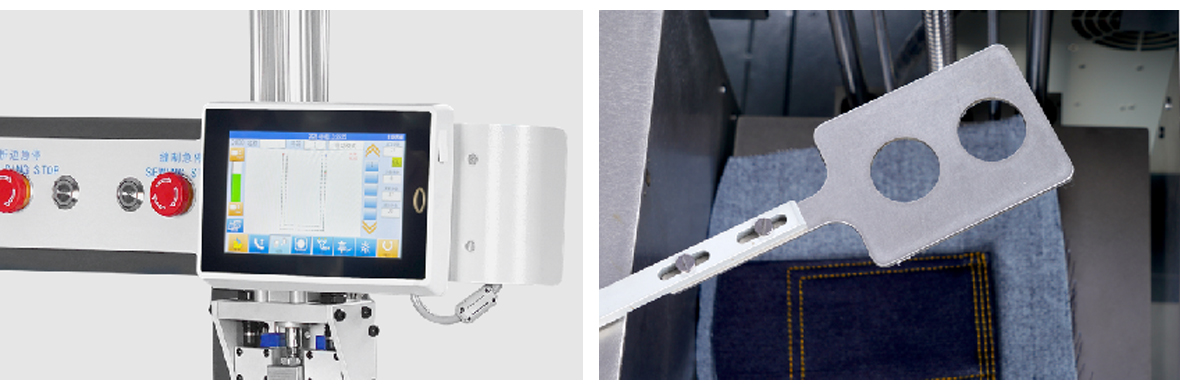

1.Automated production,feeding,folding,sewin g,receiving, the entire process is automatically completed by the machine.
2.The adjustable work clamp and adjustable folding knife are designed, so there is no need to replace the work clamp and folding knife when changing the mold.
3.The automatic receiving system, the fabrics are neatly placed.

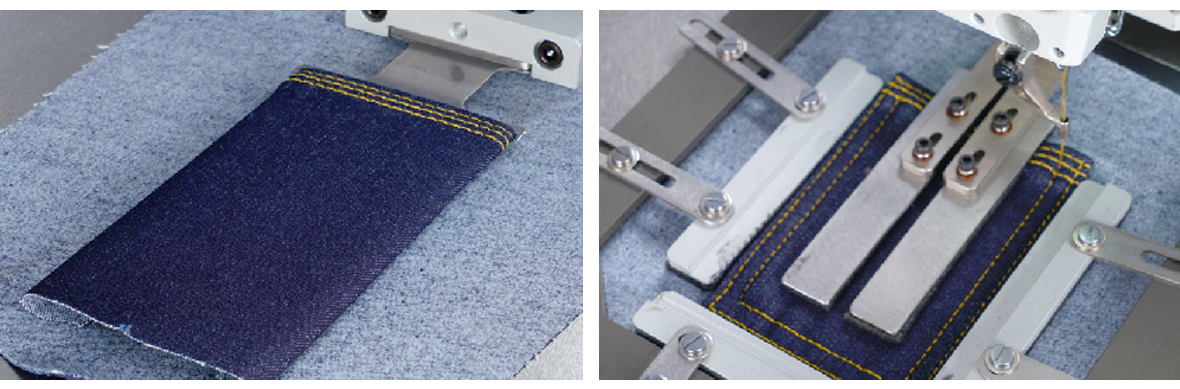

NS-2212N-WP Application Example
SPECIFICATIONS
Machine type
NS-2212N-WP
Machine Head
Electonic Pattern Machine
Stitches
Single Lockstitch
Needle Type
DPx17(16#-19#)
Feeding device
Intermittent feeding(pulse motor drive)
Stitches distance
0.05-12.7mm
Max.sewing speed
2800rpm
Max.watch pocket size
140mm(W)x 115mm(L)
Production Efficiency
（depends on fabric size）
Motor
AC-servo motor 750W
Peak power
500W
Power supply
Single phase 220V
Air pressure
0.5Mpa
Package size
(L) 1370 mm*（W）1000 mm*（H）1500 mm
Weight
261kg
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
