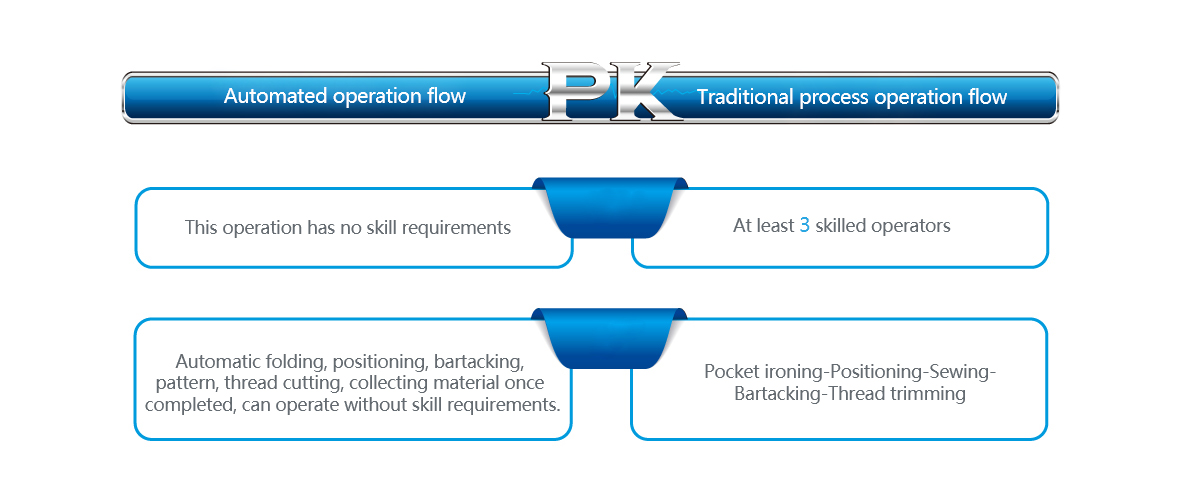

Brand-new automated production process enhances production efficiency

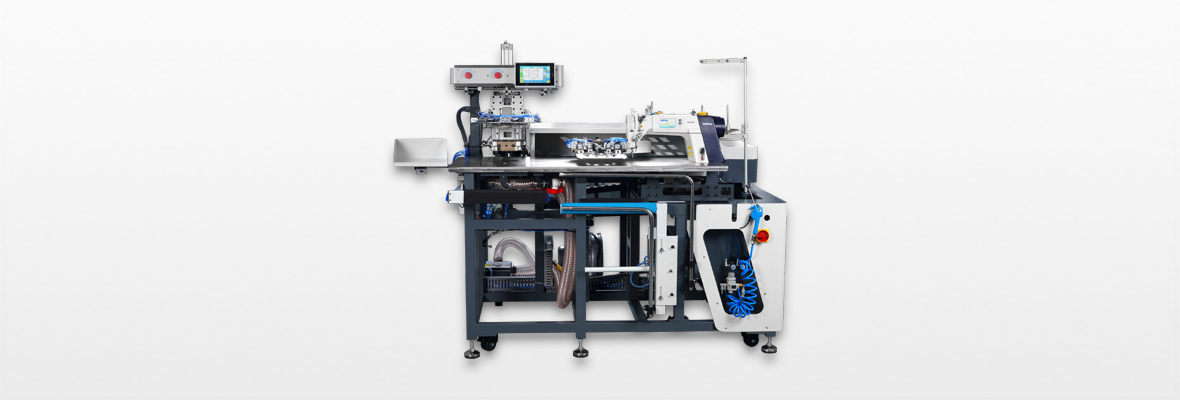

NS-7300A-PS/K PRODUCT FEATURES
1.The newly designed automatic cold folding and non-ironing device eliminates the need for pocket folding and iron pocket processes, and easily realizes high-quality sewing.

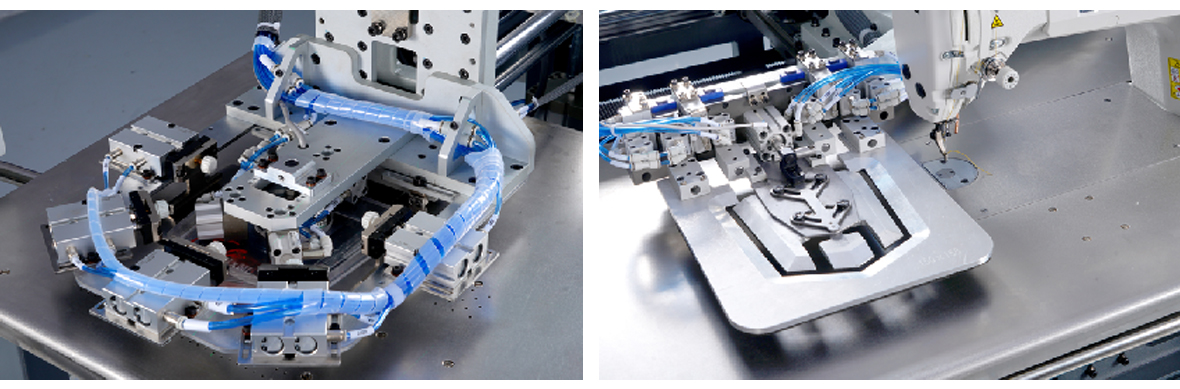

2.The design of the quick mold change mechanism saves mold change and adjustment time and improves work efficiency.
3.Using the Japanese Brother 7300A head and the independent drive design of the middle presser foot, the stitches are beautiful and the sewing speed is faster.

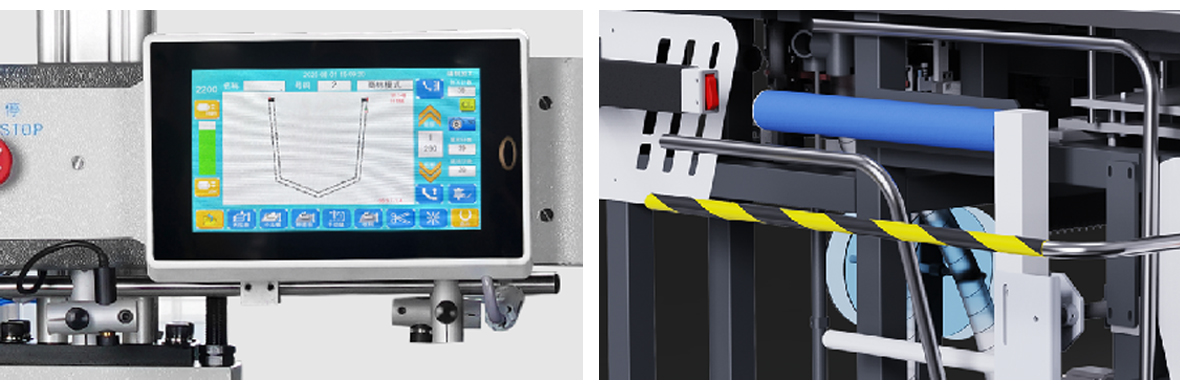

4.Full servo control system, accurate drive control, one-time completion of the pocket setting process, no operating skills required;
5.Automatic collecting system, neat collecting, saving labor.
NS-7300A-PS/K Application Example
SPECIFICATIONS
Machine type
NS-7300A-PS/K
Machine Head
S-7300A-605
Maximum sewing speed
4000rpm
stitch
Single Lockstitch
Hook type
Rotary hook
Needle type
DP×17 ( ♯ 16 －♯ 21)
Needle pitch
0.05-12.7mm
Mold change mode
Fast change mold (pneumatic)
Working voltage
AC220V
Working air pressure
0.5Mpa 1.8L/min
Machine configuration
Redundancy device (standard)
Optional device
Pad attachment device
External dimension（mm）
1700（L)×1600(W)×1560(H)
weight
490Kg
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
