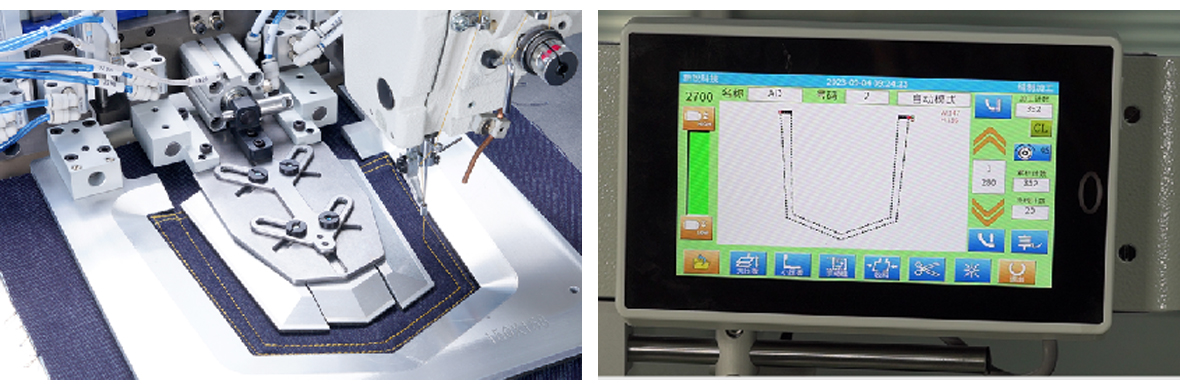

Quick die change design saves operation and waiting time
NS-1510B-PS PRODUCT FEATURES

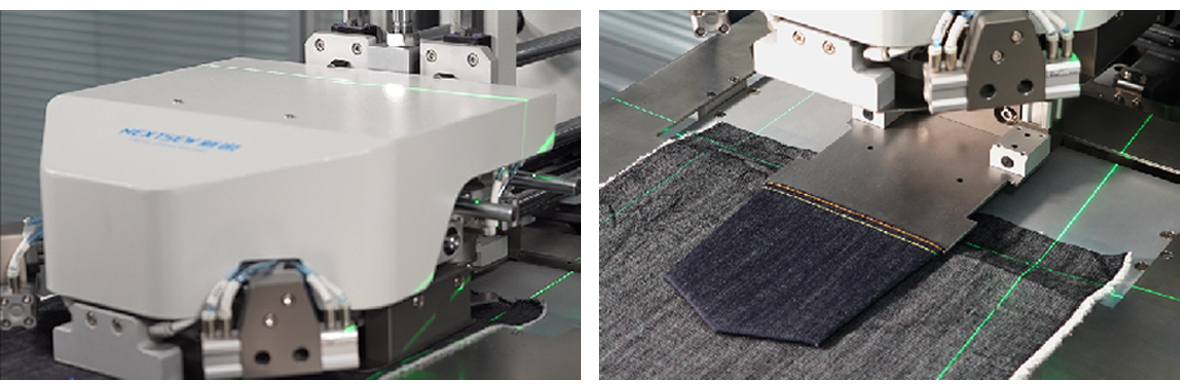

1.The newly designed automatic cold folding and non-ironing mechanism eliminates the need for pocket folding and iron pocket processes, and easily realizes high-quality sewing.
2.The design of the quick mold change mechanism saves mold change and adjustment time and improves work efficiency;
3.Using the Nextsew 1510 pattern machine head, and the pattern program editing is simple and fast, and the stitches are more beautiful.

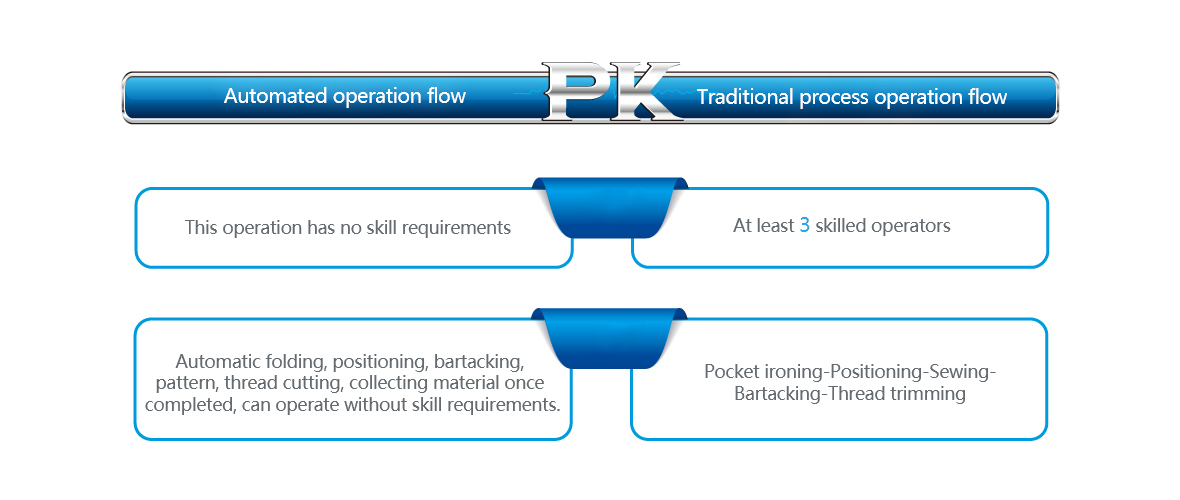

4.The full servo control system is adopted, the control is accurate, and the pocket process is completed at once, without operating skills requirements.
5.The automatic collecting system, the collecting is neat and saves labor.
NS-1510B-PS Application Example
SPECIFICATIONS

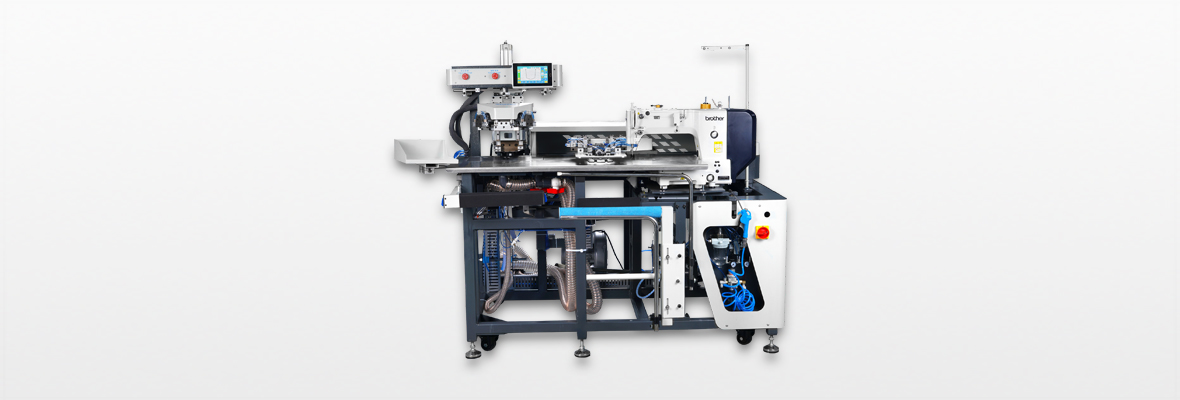

Machine model
NS-1510B-PS
Machine Head
BAS-31XH-05
Maximum sewing speed
2800rpm
stitch
Single Lockstitch
Hook type
Shuttle hook
Needle type
DP×17 ( ♯ 16 －♯ 21)
Stitch distance
0.05-12.7mm
Mold change mode
Fast change mold(pneumatic
Working voltage
AC220V
Working air pressure
0.5Mpa 1.8L/min
Machine configuration
Redundancy device (standard)
Optional device
Pad attachment device
External dimension(mm)
1780(L)×1530(W)×1750(H)
weight
550Kg
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
