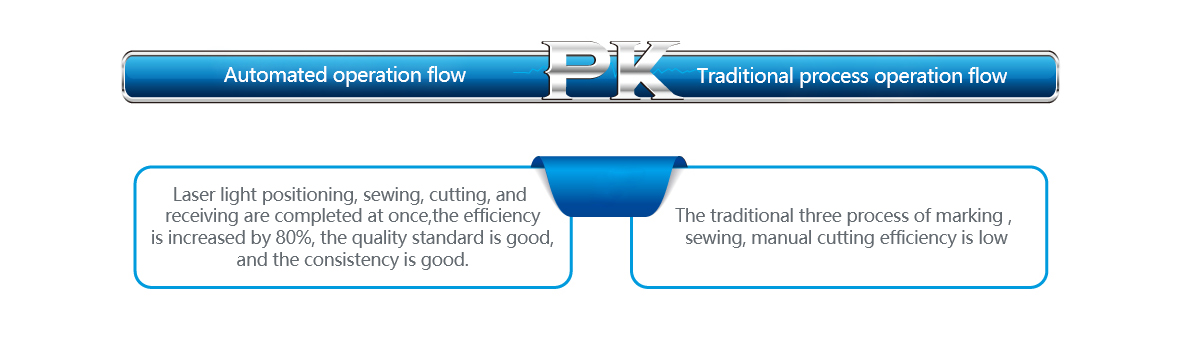

Brand-new automated production process enhances production efficiency
NS-104B-PLK PRODUCT FEATURES

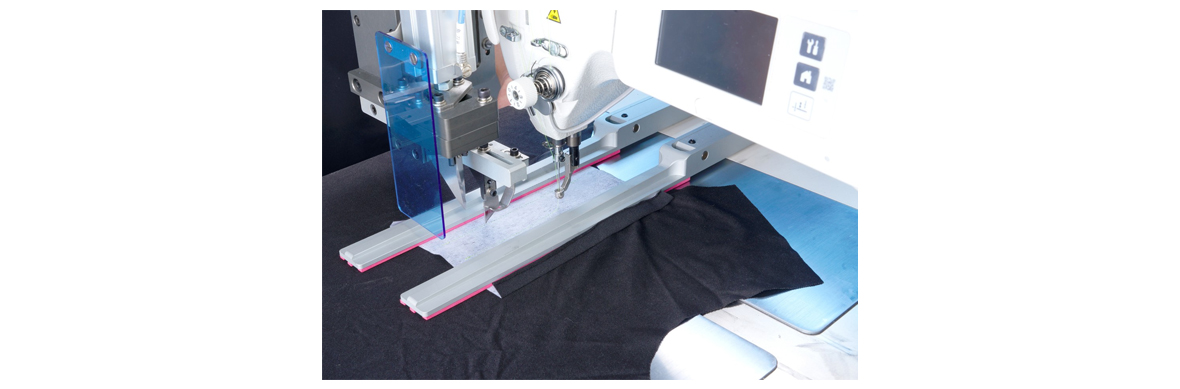

1.Fully automated one-stop production,feeding, precise positioning, sewing,receiving, all processes are automated.
2.The corner knife is designed with adjustable width to meet the placket sizes of different widths.
3.The full servo electric control system makes the sewing more accurate and the stitches more beautiful.
4.The function set up quickly, and a variety of process types are available.

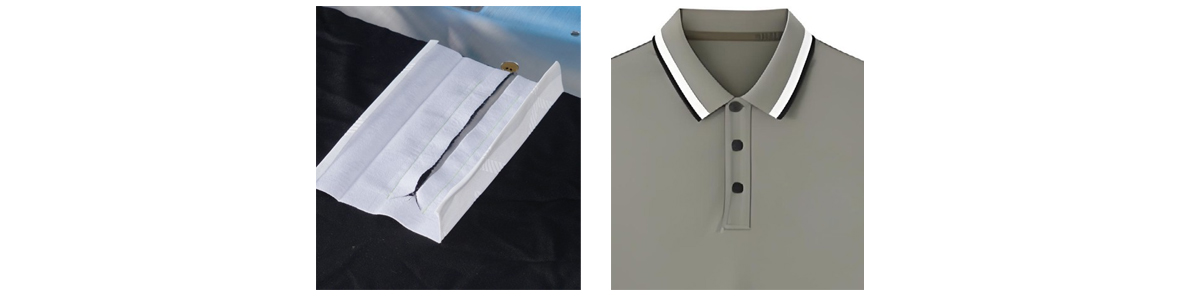

NS-104B-PLK Application Example
SPECIFICATIONS
Specification
NS-104B-PLK
Machine Head
Brother S-7300A
Needle Type
DPx17(9#-14#)
Stitches
Single Lockstitch
Feeding device
Intermittent feeding(pulse motor drive)
Stitches distance
0.05-12.7mm
Max.sewing speed
4000rpm
Max.placket size
40mm(W)x 280mm(L)
Mid-Cutter Device
single or double knives
Cutter Device
Adjustable cutting width
Production Efficiency
（depends on fabric size）
Control System
full servo motor control system
Peak power
600W
Power supply
Single phase 220V
Air pressure
0.5Mpa
Package size
(L) 1720 mm*（W）1570 mm*（H）1500 mm
Weight
343kg
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
